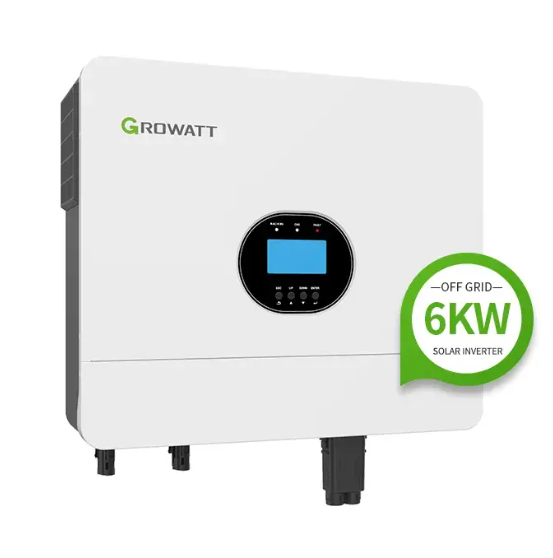

Growatt Hybrid Inverter 6KW (Copy)

Description

Growatt 6KW Hybrid Inverter: The Ultimate Solar Energy Solution in Bangladesh

Embrace the future of sustainable energy with the advanced Growatt 6KW Hybrid Inverter, now readily available across Bangladesh. Designed to seamlessly integrate solar power with grid electricity and battery storage, this cutting-edge inverter offers unparalleled energy independence, reliability, and cost savings for homes and small businesses. Whether you’re looking to reduce your electricity bills, ensure uninterrupted power during outages, or contribute to a greener planet, the Growatt 6KW Hybrid Inverter is your ideal solution in the dynamic energy landscape of Bangladesh.

This powerful 6000W hybrid inverter intelligently manages energy flow from multiple sources – solar panels, batteries, and the utility grid – to optimize power consumption and maximize self-sufficiency. It’s engineered for efficiency, durability, and ease of use, making it a top choice for solar enthusiasts and energy-conscious consumers seeking a robust solar inverter in Bangladesh.

Overview

The Growatt 6KW Hybrid Inverter represents a significant leap in solar technology, combining the functionalities of an on-grid inverter, an off-grid inverter, and a battery charger into one compact unit. This hybrid capability allows users in Bangladesh to enjoy the benefits of both grid-tied solar systems (selling excess power back to the grid where applicable) and off-grid battery backup solutions (providing power during load shedding or grid failures). With its high efficiency and smart energy management features, it’s perfectly suited for the challenging power conditions often experienced in various regions of Bangladesh.

Specifically designed to work with high-voltage batteries, the Growatt 6KW Hybrid Inverter ensures superior performance and system flexibility. Its robust design and intelligent control algorithms guarantee stable power output, optimal battery charging, and extended system lifespan, making it a wise long-term investment for any property in Bangladesh.

Key Features & Benefits

The Growatt 6KW Hybrid Inverter is packed with features that make it a leading choice for solar power systems in Bangladesh:

• True Hybrid Functionality: Seamlessly switches between on-grid, off-grid, and battery backup modes. This means you can power your home directly from solar, store excess energy in batteries for night-time use or emergencies, and draw from the grid when needed.
• High Power Output (6000W): Capable of powering a wide range of household appliances, including air conditioners, refrigerators, water pumps, and lighting, ensuring your essential loads remain operational even during extended blackouts.
• Dual MPPT Trackers: Equipped with two Maximum Power Point Tracking (MPPT) inputs, allowing for optimal energy harvesting from solar panels even when panels are installed at different orientations or experience partial shading. This maximizes your solar yield throughout the day.
• Battery Compatibility: Designed to work with modern high-voltage lithium-ion batteries, offering higher efficiency, longer cycle life, and more compact storage solutions compared to traditional lead-acid batteries.
• High Efficiency: Boasting a maximum efficiency of up to 98.4% and Euro efficiency of 97.5%, the inverter minimizes energy losses during conversion, ensuring more of your generated solar power is available for use.
• Smart Energy Management: Intelligent algorithms prioritize solar power usage, store excess energy, and seamlessly switch to grid or battery power, optimizing energy flow for maximum savings and uninterrupted supply.
• Integrated Monitoring System: Built-in Wi-Fi or GPRS module (optional) allows for real-time monitoring of your solar system’s performance via a smartphone app or web portal. You can track energy production, consumption, battery status, and system health from anywhere in Bangladesh.
• Robust Protection Features: Includes comprehensive protection against overvoltage, undervoltage, overcurrent, short circuit, islanding, and overheating, ensuring the safety and longevity of your entire solar system.
• IP65 Protection Rating: Its durable casing offers excellent protection against dust and water ingress, making it suitable for outdoor installation in various weather conditions prevalent in Bangladesh.
• Silent Operation: Designed with natural convection cooling, eliminating the need for noisy fans and ensuring quiet operation, perfect for residential environments.
• Easy Installation: Compact design and user-friendly interface simplify the installation process for certified technicians.

Why Choose a Growatt 6KW Hybrid Inverter?

For consumers and businesses in Bangladesh, choosing the Growatt 6KW Hybrid Inverter means investing in a reliable, efficient, and future-proof energy solution. The erratic power supply and rising electricity costs make a hybrid solar system an increasingly attractive option. This inverter not only ensures continuous power supply but also helps significantly reduce monthly electricity bills by maximizing self-consumption of solar energy.

Its advanced technology and robust build quality ensure a long operational life with minimal maintenance. Furthermore, Growatt is a globally recognized brand known for its commitment to quality and innovation in the solar industry, providing peace of mind for users in the Bangladesh market. It’s a smart choice for those seeking the best solar inverter in Bangladesh that balances performance, features, and value.

Technical Specifications

Here are the detailed technical specifications for the Growatt 6KW Hybrid Inverter (typical model like MIN 6000TL-XH or similar):

Parameter	Value
Input (DC)
Max. PV Input Power	9000 W
Max. DC Voltage	550 V
Start-up Voltage	80 V
MPPT Voltage Range	80 V – 550 V
Rated Input Voltage	360 V
Max. Input Current per MPPT	13.5 A
Max. Short Circuit Current per MPPT	17 A
Number of MPPTs / Strings per MPPT	2 / 1
Output (AC)
Rated AC Output Power	6000 W
Max. AC Output Power	6600 VA
Max. AC Output Current	28.7 A
Rated AC Voltage (Range)	230 V (180 V – 270 V)
Rated AC Frequency (Range)	50 Hz / 60 Hz (45 Hz – 55 Hz / 55 Hz – 65 Hz)
Power Factor	0.8 leading ~ 0.8 lagging
THDi	<3%
AC Connection	Single Phase
Battery
Compatible Battery Type	Lithium-ion (High Voltage)
Battery Voltage Range	100 V – 550 V
Max. Charge/Discharge Current	18.5 A
Max. Charge/Discharge Power	6000 W
Efficiency
Max. Efficiency	98.4%
Euro Efficiency	97.5%
MPPT Efficiency	99.9%
General Data
Dimensions (W/H/D)	425 x 387 x 170 mm
Weight	14 kg
Operating Temperature Range	-25°C to +60°C
Noise Emission (Typical)	≤ 25 dB
Protection Degree	IP65
Cooling Concept	Natural Convection
Display	LCD, LED
Communication Interfaces	USB, WiFi / GPRS (Optional), RS485 (for battery)
Warranty	5 Years (Standard, extendable to 10 years)

Operating Modes & Functionality

The Growatt 6KW Hybrid Inverter offers flexible operating modes to suit various energy needs in Bangladesh:

• Self-Consumption Mode: Prioritizes using solar power to run household appliances first, then charges the battery with excess solar, and only draws from the grid as a last resort. This maximizes energy independence and reduces electricity bills.
• Time-of-Use Mode: Allows users to program the inverter to charge batteries during off-peak electricity hours (when grid power is cheaper) and discharge batteries during peak hours (when grid power is more expensive), further optimizing savings.
• Backup Mode: In the event of a grid outage, the inverter automatically switches to off-grid mode, drawing power from the solar panels and connected batteries to provide uninterrupted power to essential loads. This is a critical feature for managing load shedding in Bangladesh.
• Feed-in Priority Mode: In regions where net metering is supported, this mode can be configured to prioritize feeding excess solar power back to the grid to earn credits, after fulfilling local consumption and battery charging.

Installation & Usage Guidelines

Installing a Growatt 6KW Hybrid Inverter should always be performed by a certified and experienced solar technician. Proper installation ensures safety, optimal performance, and compliance with local electrical codes in Bangladesh. Key considerations include:

• Site Assessment: Evaluate the best location for solar panels for maximum sun exposure and a suitable, well-ventilated location for the inverter and batteries.
• Wiring: Ensure correct DC and AC wiring, grounding, and protection devices are installed according to manufacturer specifications and safety standards.
• Battery Connection: Connect compatible high-voltage lithium-ion batteries correctly, adhering to polarity and communication protocols.
• Monitoring Setup: Configure the Wi-Fi or GPRS module for remote monitoring, allowing you to keep track of your system’s performance via the Growatt ShinePhone app or ShineWeb portal.
• Maintenance: Regular checks by a professional are recommended to ensure the system operates at peak efficiency and to address any potential issues promptly. Keep the inverter free from dust and ensure proper ventilation.

Growatt 6KW Hybrid Inverter Price in Bangladesh

The Growatt 6KW Hybrid Inverter price in Bangladesh typically ranges from ৳98,500 to ৳120,000, depending on the specific model (e.g., MIN 6000TL-XH or SPH 6000TL3-BH if 3-phase), the dealer, and any ongoing promotional offers. This price usually covers the inverter unit itself. Additional costs will include solar panels, batteries, mounting structures, wiring, installation charges, and any necessary permits.

It’s advisable to compare prices from authorized Growatt dealers in Bangladesh to ensure you get the best price in Bangladesh for this high-quality inverter. Investing in a Growatt 6KW Hybrid Inverter is a significant step towards energy independence and long-term savings.

Availability & Support in Bangladesh

The Growatt 6KW Hybrid Inverter is widely available through a network of authorized distributors, solar solution providers, and e-commerce platforms across Bangladesh. You can find this advanced solar inverter in major cities like Dhaka, Chittagong, Sylhet, Khulna, and other regions. To find a Growatt 6KW Hybrid Inverter near me in Bangladesh, a quick search for “Growatt dealer Bangladesh” or “solar inverter supplier Bangladesh” will yield several reputable options.

Authorized dealers typically offer comprehensive support, including pre-sales consultation, professional installation services, and after-sales technical assistance. Most Growatt inverters come with a standard 5-year warranty, which can often be extended, providing peace of mind for your investment. Ensure you purchase from a reputable source to avail genuine products and reliable warranty support for your Growatt inverter in Bangladesh.
